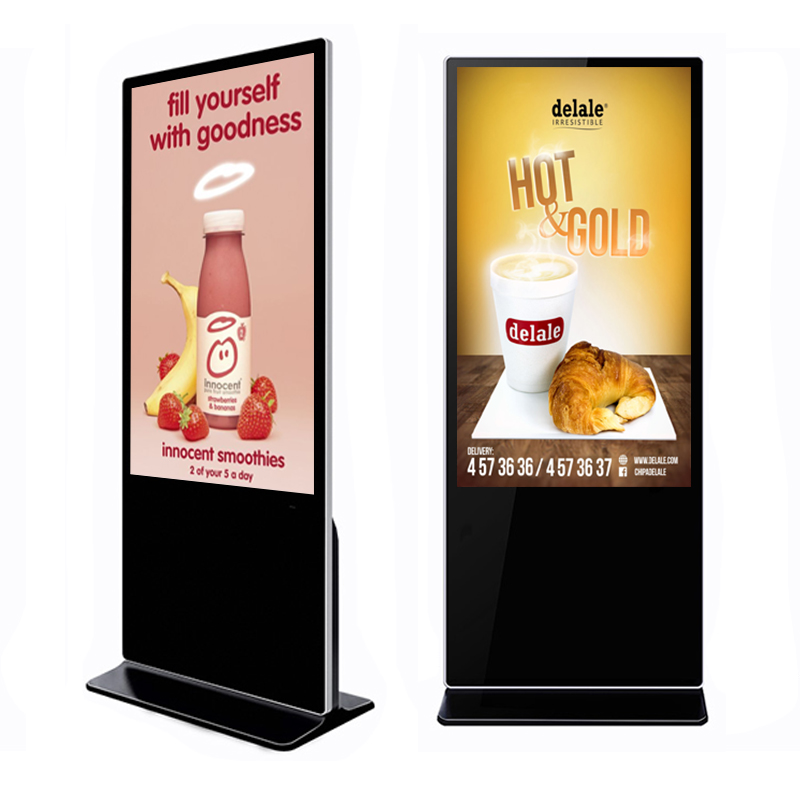

55 Inch indoor LCD Digital Signage Vertical Android Windows Capacitive Floor Stand digital Kiosk

Display parameters

panel type

a-siTFT-LCD

type of light source

E LED

page scale

16:9

native resolution

1080×1920(RGB), FHD

frame rate

60Hz

Brightnesscd/m² (Typ.)

350

Contrast (Typ.)

4000:1

Pixel pitch(H×V)(mm)

0.630×0.630

Dot Spacing(H×V)(mm)

0.210×0.630

Display color

16.7M

Display color gamut

72% NTSC (CIE1931)

Viewing angle

178°

Response time (ms)

8(Typ.)(G to G)

display mode

ADS, Normally Black, Transmissive

Display area(H×V)(mm)

680.4×1209.6

life

≥50000 hours

audio

trumpet

2 × 8Ώ 10W _ _

power supply

Power parameters

AC 100～240V, 50/60HZ

Power consumption of the whole machine (W)

< 120W _

Standby power consumption

<0.5W

environmental conditions

Operating temperature

0℃～50℃

Working humidity

-20%～60% (no condensation)

structure appearance

Overall size (H×W×D) (mm)

1904.83 × 7 62 × 4 60 ( 25 at the thinnest point ) (without packaging)

1950 × 855 × 210 (including carton packaging)

Overall weight ( kg )

Net weight/gross weight

border material

Aluminum alloy oxide brushed profile

border color

Black and silver optional

body color

black

tempered glass

3.5mm thick high strength physical tempered glass

Drive scheme parameters

Display solution

interface

HDMI IN ×1, VGA IN ×1;

Android Mstar358 1G + 8G

System Configuration

CPU: Mstar358 , Architecture: Cortex-A53 , Core: Quad- core , Frequency: 1.5G , Memory: 1G , Storage: 8G , Operating System:
Android 6.0 , Decoding Resolution: 1920 × 1080

interface

USB2.0 HOST × 2 ,, 10 /100mbps RJ45 network port ×1, TF card holder ×1 ( optional), HDMI OUT ×1 (optional), LINE OUT ×1
(optional);

Android RK 3 128 1G +8 G

System Configuration

CPU: RK3128, Architecture: Cortex-A7 , Core: Quad Core , Main Frequency: 1.2G , Memory: 11G , Storage: 8G , Operating System:
Android 5.1 , Decoding Resolution: 1920 × 1080

interface

USB2. 0 HOST ×1, USB2. 0 OTG ×1, 10 /100mbps RJ45 network port ×1, TF card holder ×1;

Android RK 32882 G + 8G/16G (L version)

System Configuration

CPU: R K3288 , Architecture: Cortex-A7 , Core: Quad Core , Main Frequency: 1.8G , Memory: 2G , Storage: 8G / 16G , Operating
System: Android 5.1 , Decoding Resolution : 3840 × 2160

interface

HDMI OUT ×1, LINE OUT ×1, USB2.0 HOST × 2 , 10 /100mbps RJ45 network port ×1, TF card holder ×1, SIM card holder ×1;

Android RK 32882 G +8 G (Version F)

System Configuration

CPU: R K3288 , Architecture: Cortex-A7 , Core: Quad Core , Main Frequency: 1.8G , Memory: 2G , Storage: 8G , Operating System:
Android 8.1 , Decoding Resolution : 3840 × 2160

interface

HDMI OUT ×1 (optional), earphone ×1, USB2. 0 HOST ×1, USB2. 0 OTG ×1 (optional), 10 /100mbps RJ45 network port ×1, TF card holder
×1, SIM card holder × 1;

Android RK 32882 G + 16G (Version F)

System Configuration

CPU: R K3288 , Architecture: Cortex-A7 , Core: Quad Core , Main Frequency: 1.8G , Memory: 2G , Storage: 8G , Operating System:
Android 8.1 , Decoding Resolution : 3840 × 2160

interface

HDMI OUT ×1, headphone ×1, USB2. 0 HOST ×1, USB2. 0 OTG ×1, 10 /100/1000mbps RJ45 network port ×1, TF card holder ×1, SIM card
holder ×1;

Display scheme ( 4k)

interface

HDMI 2.0 IN × 2 , USB × 1;

Android H 560 2G + 16G ( L version )

System Configuration

CPU: Hi3751 V560 , Architecture: Quad-core A55 , Core: Quad- core , Frequency: 1.5G ,; GPU: Mali G52; Memory: 2G , Storage: 16G ,
Operating System: Android 9.0 , Decoding Resolution: 3840 × 2160@ 60Hz

interface

HDMI IN ×1, USB2.0 HOST × 2 ,, 10 /100mbps RJ45 network port ×1;

Computer version (three generations of notebook solutions)

System Configuration

Chipset: H M77 ;
CPU : Core I 3 3100M , main frequency: 2.4GHz , turbo frequency: -, L3 cache: 3 MB , number of cores: dual core, number of
threads: four threads
CPU : Core I5 3 210M , main frequency: 2.5GHz , turbo frequency: 3.1GHz , L3 cache: 3 MB , number of cores : dual core, number of
threads: four threads
CPU : Core I 7 352 0M , main frequency: 2.9GHz , turbo frequency: 3.6GHz , L3 cache: 3 MB , number of cores: dual core, number of
threads: four threads
Memory: DDR3 4G/8G
Hard Disk: 128G Solid State / 256G Solid State
WIFI : Onboard USB RTL8188 802.11b/g/ n
Power supply: DC-IN/ATX-4pin; power supply DC19V@4A/12V@5A
Functions: self-starting when incoming calls, timed power on/off, network shutdown wake-up, network diskless startup, network
copy, one-key system restore, motherboard overvoltage and undervoltage protection, etc.

interface

HDMI×1, RJ45×1, USB 2.0×2 or USB 3.0×2, A C socket×1

Computer version (fourth generation notebook solution)

System Configuration

Chipset : HM87 ; _
CPU : Core I 3 4000 M , main frequency: 2.4GHz , turbo frequency: -, L3 cache: 3 MB , number of cores: dual core, number of
threads: four threads
CPU : Core I54200 M , main frequency: 2.5GHz , turbo frequency: 3.1GHz , L3 cache: 3 MB , number of cores: dual core, number of
threads: four threads
CPU : Core I 7 4600 M , main frequency: 2.9GHz , turbo frequency: 3.2 GHz , L3 cache: 3 MB , number of cores: dual core,
Number of threads: four threads
Memory: DDR3 4G/8G
Hard Disk: 128G Solid State / 256G Solid State
WIFI : Onboard USB RTL8188 802.11b/g/ n
Power supply: DC-IN/ATX-4pin; power supply DC19V@4A/12V@5A
Functions: self-starting when incoming calls, timed power on/off, network shutdown wake-up, network diskless startup, network
copy, one-key system restore, motherboard overvoltage and undervoltage protection, etc.

interface

HDMI×1, RJ45×1, USB 2.0×2 or USB 3.0×2, A C socket×1
